Stress Test Home ECG Machine 12 Channel Home Exercise Ecg Machine USB Cable
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Product: | Top quality 12 channel home exercise ecg machine from China supplier | Type: | Stress Test |
|---|---|---|---|
| Cable: | Simultaneous 12-lead | Data transmission: | USB cable |
| Defibrillation Protect: | Build-in | Input Impedance: | >20MΩ |
| Frequency Response: | 0.05-250HZ | Communication: | USB |
| Time Constant: | 3.2Sec | ||
| Điểm nổi bật: | 12 lead ecg machine,small ecg machine |
||

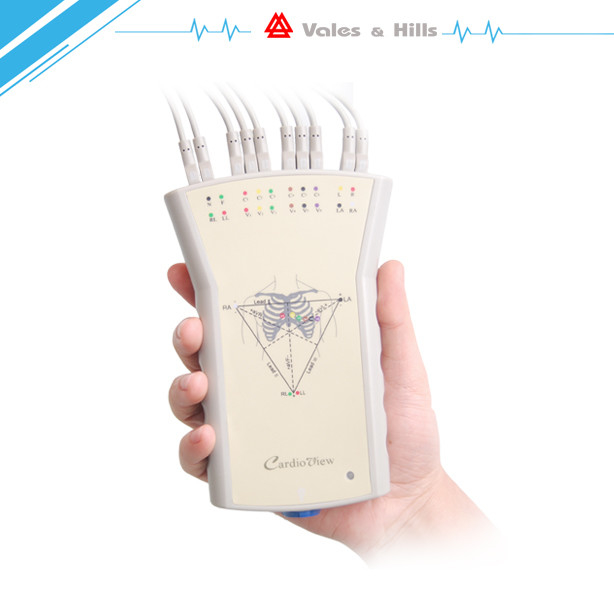

Top quality 12 channel home exercise ecg machine from China supplier
Reflecting the latest development in stress system
V&H newly developed CV1200 is a high-performance cardiac stress system which incorporates the latest innovations with the easy of use workflow and intuitive icons and controls that you come to expect in CardioView series. Thanks to its elaborately designed ECG acquisition device and proprietary digital processing algorithms, CV1200 is specially featured in its super-stable and noise-free ECG tracings even at steep grades. The sophisticated software gives you a perfect solution for cardiology diagnosis as well as a fantastic user experience.
Why select CV1200——Advantages:
- High resolution A/D: 24K SPS/Ch, 24 bits
- VH patent technology: Digital synchronous A/D
- VH patent technology: Myoelectric filter based on ECG spectrum
- VH proprietary algorithm: Minimum delay baseline wander eraser
- Different filters selectable : LP, HP and artifact filters
- Skin-electrode impedance measurement
- Preset classical protocols and unlimited user defined protocols
- Arrhythmia detect and live review
- Various trends: tracking and compare
- Soft anti-aliased ECG display
- ECG, BP, SO2, METS, max VO2, Distance and Time synchronous display
- Rehabilitation mode: Cardiac function recovery protocols
- Independent testing for different treadmills and ergometers
Specification
| CV-1200 Specification | ||
|
System
|
Monitor | 17" colour,high resolution |
| Operator interface | Standard alphanumeric PC keyboard, and mouse | |
| Power requirement | 110/230V,50/60Hz | |
| Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
| Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
| Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
| Paper speed | 12.5/25/50mm/sec | |
| Sensitivity | 5/10/20mm/mV | |
| Print format | 6/12 channel printout, Automatic baseline adjustment |
|
| Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
| Sampling rate | 1000Hz/ch | |
| CMR | >90dB | |
| Maximum Electrode Potential | +300mV DC | |
| Isolation | 4000V | |
| Current Leek | <10µA | |
| Digital Resolution | 12 bits | |
| Input range | +10 mV | |
| Software optional | Automatic ECG measurements and interpretation, Vector Cardiograph Ventricular Late Potentials, QT Dispersion |
|
| Environment Condition | Temperature operating | 10 to 40 |
| Temperature storage | -10 to 50 | |
| Pressure operating | 860hPa to 1060hPa | |
Our service:
1. Warranty —— offer 12 months free after-sale services for customers, and be responsible for life-time repair.
2. Technical —— Offer professional engineers for customers on the technical support.
3. Freight —— Pay for freight when we ship the repair product.
