Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval

Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval

Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval
Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval

Hình ảnh lớn :  Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval Giá tốt nhất

Thông tin chi tiết sản phẩm:
Place of Origin: China(Mainland)
Hàng hiệu: V&H
Chứng nhận: CE & ISO
Model Number: iCV-200
Thanh toán:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 days after payment
Payment Terms: T/T, Western Union,
Supply Ability: 50 sets per week
Chi tiết sản phẩm
Product: Hot-Selling mini wireless Resting ECG machine for iOS with CE Type: Resting
Transfer Way: Bluetooth Model No.: iCV200
Color: White Channels: 12
Điểm nổi bật:

portable ecg monitor

,

wifi ecg



Hot-Selling mini wireless Resting ECG machine for iOS with CE



iCV200 ecg 12 channel device

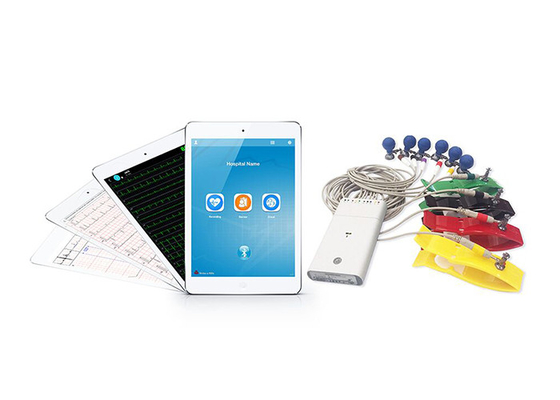

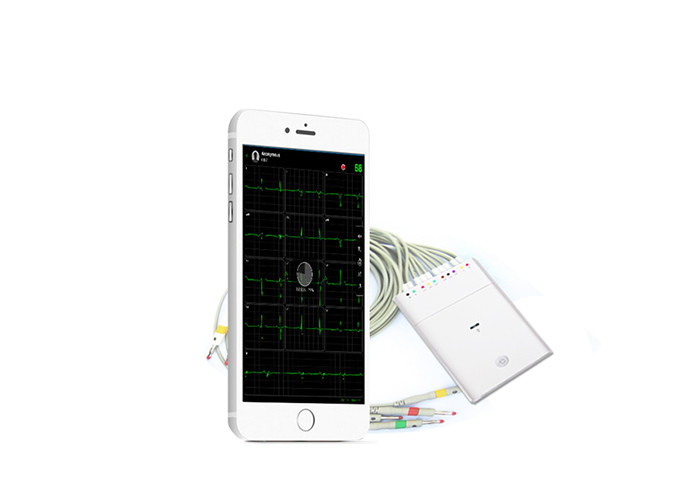

CARDIO VIEW iCV200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,iCV200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Advantages:

  • The first professional elsctrocardiogram (ECG) product developed on android portable device.
  • High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  • Automatic measurements and interpretations.
  • Bluetooth communication



ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection: >110dB
Resolution: 0.4uV
Input Impedance: >20M
Frequency Response: 0.05-250Hz(±3bB)
Time Constant: >3.2Sec
Maximum Electrode Potential: ±300mV DC
Dynamic Range: ±15mV
Communication : WIFI(ipad,iphone)Blue Tooth(Android)
Power: 2xAA Batteries
Defibrillation Project:  Build-in





Mini Wireless Resting Wifi ECG Machine For IOS With CE Approval



About Us



Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor.

V&H's core concept is teamwork on which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward the goal in rewarding people and society. V&H keeps looking to the future with hope and determination.



Apple ECG.pdf
