12 Channel Stress Test Exercise Ecg Machine USB Cable Data Transmission
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Product: | 2017 new arriving 12 channel stress test ecg device for medical | Type: | Stress Test |
|---|---|---|---|

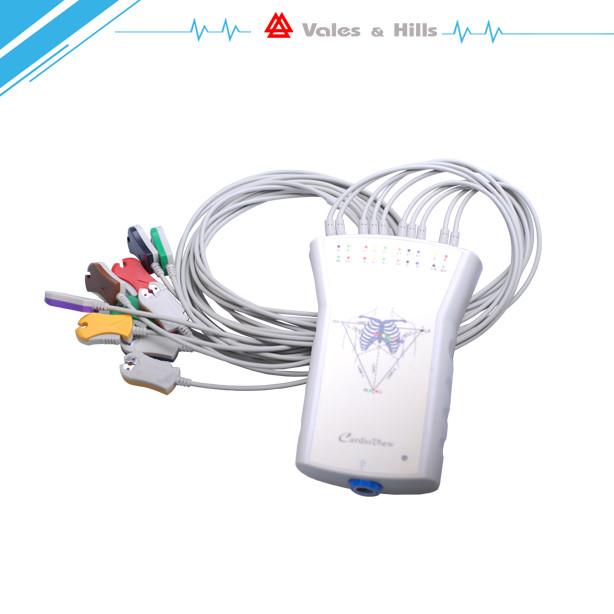

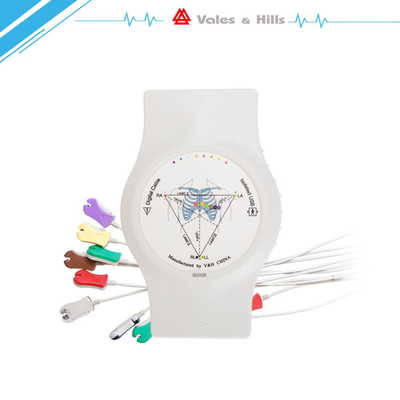

| Function: | automatical monitor and analysis ECG | Cable: | Simultaneous 12-lead |
| Data transmission: | USB cable | Defibrillation Protect: | Build-in |
| Điểm nổi bật: | stress ecg machine,stress test system |
||
2017 new arriving 12 channel stress test ecg device for medical
Description:
| Brand Name | V&H |
| Model Number | CV1200 |
| Place of Origin | Beijing, China (Mainland) |
| Color | Hite black grey |
| Transfer way | USB |
1. Automatic ECG measurements and interpretation
2. CE & ISO approve
3. 12- channel ECG with ST measurement
Why select CV1200——Advantages:
- High resolution A/D: 24K SPS/Ch, 24 bits
- VH patent technology: Digital synchronous A/D
- VH patent technology: Myoelectric filter based on ECG spectrum
- VH proprietary algorithm: Minimum delay baseline wander eraser
- Different filters selectable : LP, HP and artifact filters
- Skin-electrode impedance measurement
- Preset classical protocols and unlimited user defined protocols
- Arrhythmia detect and live review
- Various trends: tracking and compare
- Soft anti-aliased ECG display
- ECG, BP, SO2, METS, max VO2, Distance and Time synchronous display
- Rehabilitation mode: Cardiac function recovery protocols
- Independent testing for different treadmills and ergometers
Software for function:
- 6MWT with treadmill
- Impedance testing
- User preference defining
- Real time ST-T measuring
- Real time electrode testing
- Real time arrhythmia detect
Specification:
| CV-1200 Specification | ||
|
System
|
Monitor | 17" colour,high resolution |
| Operator interface | Standard alphanumeric PC keyboard, and mouse | |
| Power requirement | 110/230V,50/60Hz | |
| Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
| Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
| Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
| Paper speed | 12.5/25/50mm/sec | |
| Sensitivity | 5/10/20mm/mV | |
| Print format | 6/12 channel printout, Automatic baseline adjustment |
|
| Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
| Sampling rate | 1000Hz/ch | |
| CMR | >90dB | |
| Maximum Electrode Potential | +300mV DC | |
| Isolation | 4000V | |
| Current Leek | <10µA | |
| Digital Resolution | 12 bits | |
| Input range | +10 mV | |
| Software optional | Automatic ECG measurements and interpretation, Vector Cardiograph Ventricular Late Potentials, QT Dispersion |
|
| Environment Condition | Temperature operating | 10 to 40 |
| Temperature storage | -10 to 50 | |
| Pressure operating | 860hPa to 1060hPa | |
