12 Lead IPad / IPod Handheld ECG Machine 2 AA Batteries Power For Medical
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Product: | 12 lead handheld iPad / iPod ECG machine for medical from China factory | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 channel | Dynamic Range: | ±15mV |
| Power: | 2 AA Batteries | Sampling Rate:: | A/D: 24K SPS/Ch; Recording: 1K SPS/Ch |
| Điểm nổi bật: | ecg monitoring device,hand held ecg |
||
12 lead handheld iPad / iPod ECG machine for medical from China factory
Advantages:

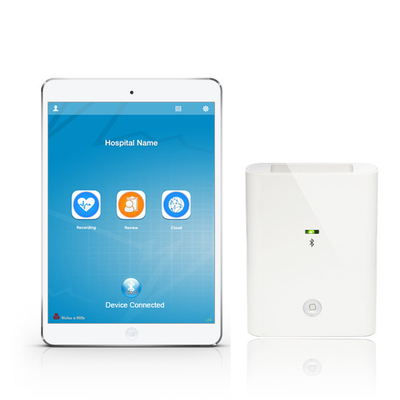

- The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- Simultaneous 12-lead ECG
- Bluetooth communication
Advantages of bluetooth communication
- Save Power
- Start within 1s
- Stable Signal
- Long distance transmission - 10m
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |
| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |
