Smart Ambulatory ECG Monitoring Holter Monitor Device With SD Card Reader

Smart Ambulatory ECG Holter Monitor Device With Recorder Elite 12

What is the Holter ecg device with recorder Elite 12?

Thanks to its sophisticated software system and elaborately designed Holter recorder,CV3000,as an integrate Holter system combines both 3-channel and standard 12-lead recording and analyzing in one,meets all high-end performance and fiscal responsibility.There are two kinds of recorders of holter ecg machine CV3000,one is with LCD Elite Plus and the other one is without LCD Elite 12. Information of Elite 12 as follow:

The following is a listing of the most frequently used for the indications below:

(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.

(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.

(3) Evaluation of patients for ST segment changes

(4) Evaluation of a patient’s response after resuming occupational or recreational activities.

(5) Evaluation of patients with pacemakers.

(6) Reporting of time and frequency domain heart rate variability.

(7) Reporting of QT Interval.

Specifications

holter ECG recorder
1.Function:ST-T Analysis,Pacemaker,HRV,T-Wave Alternance
2.Type:3-CHANNE, 12-CHANNEL
3.CE ,FDA,ios13485,Free Sales so on

Physical

Dimensions: 72*53*16mm

Weight with battery: 62g

Enclosure: ABS plastic

Operating position: any orientation

Electrical

Gain settings: 0.5X, 1X and 2X

Connector: 19 pin

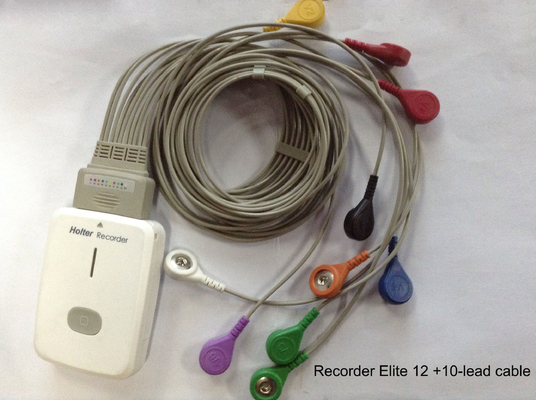

Patient cable: 10 leads or 5 leads

Channels: 12leads (8 channel)  5leads(3 channel)
Resolution: 8-16 bits

Recording: Full disclosure

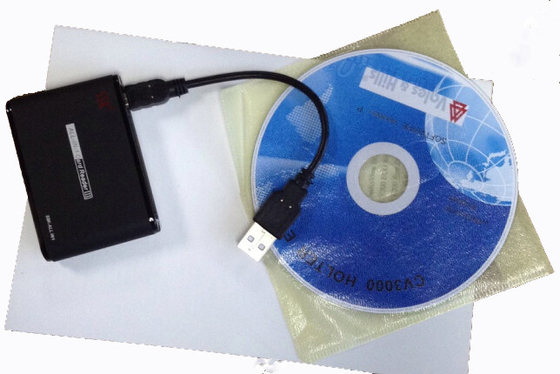

Download interface: SD card reader or USB line

Sample rate:1024/Sec max

Frequency response: 0.05HZ to 60Hz

Signal verification: LCD display

Pacemaker Detection: support

Memory

Recording time: 24-72 hours

Type:  SD

Capacity: 2GB
