12 Leads Portable Rest PC ECG For Hospital And Clinic-CV 200
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Function:: | ECG WORK STATION,Vector ECG | Color:: | grey |
|---|---|---|---|
| Channels:: | 12-LEAD ECG | Sampling:: | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
| Patient Cable:: | Standard 10-wire,15-Pin D Connector | ||
| Điểm nổi bật: | ecg monitoring device,hand held ecg |
||

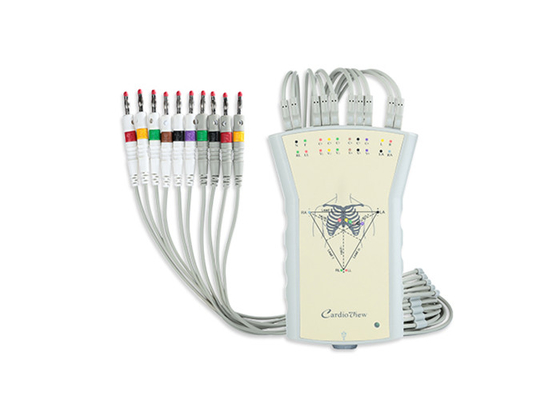

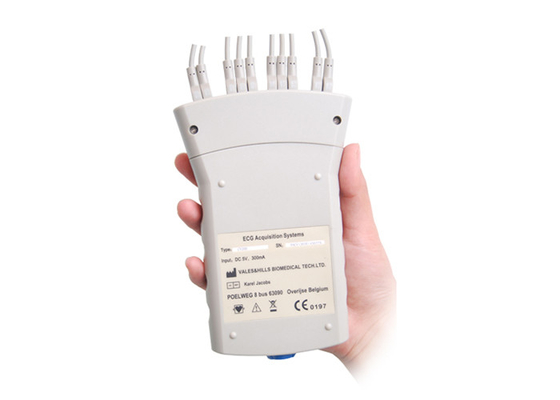

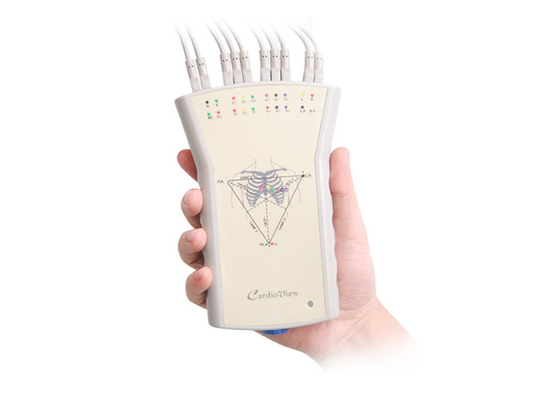

12 Leads Portable Rest PC ECG For Hospital And Clinic-CV 200
CV-200-Rest ECG,VCG and VLP
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular
Late Potential (VLP).
The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG
and VLP data. In the Windows XP environment, different reports can be viewed onscreen and
printed in numerous formats on most Windows compatible printers.
By means of regular updating of software,CV-200 remains state-of-the art both now and in the future.
With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200
guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the
patient.
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer
VH- CV200-ECG work station specification
| Sampling | 1000 S/S/Ch,16 bits, Simultaneously 12 Leads Recording |
| Digital Resolution | 0.4µV |
| Frequency Response | 0.05-250Hz(±3dB) |
| Common Mode Rejection | >90dB |
| Input Impedance | >10 M |
| Time Constant | 3.2 Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±12mV |
| Isolate Voltage | 4000V |
| Current Leak | <10µA |
| Patient Cable | Standard 10-wire,15-Pin D Connector |
| PC Interface | USB Connector |
| Dimensions | 14912226 mm(5.94.81.0 in.) |
