Nhà Sản phẩmMáy điện tâm đồ dựa trên Pc

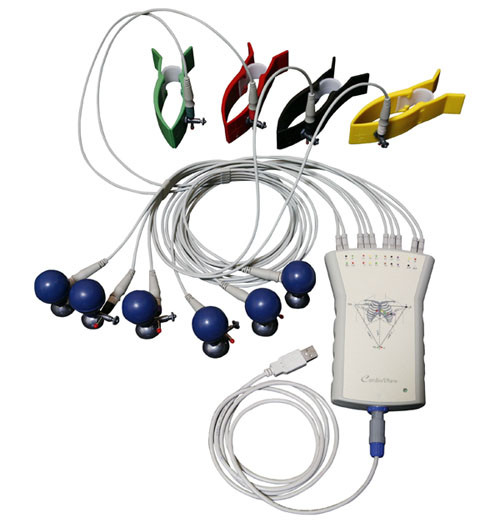

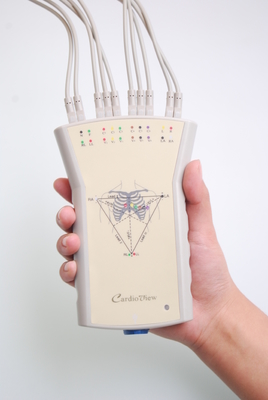

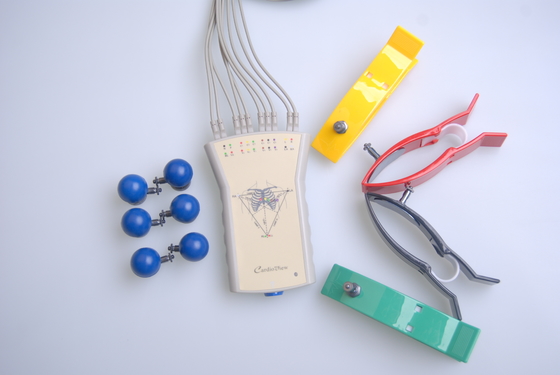

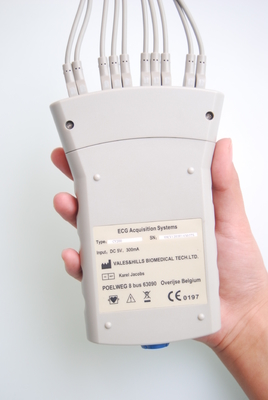

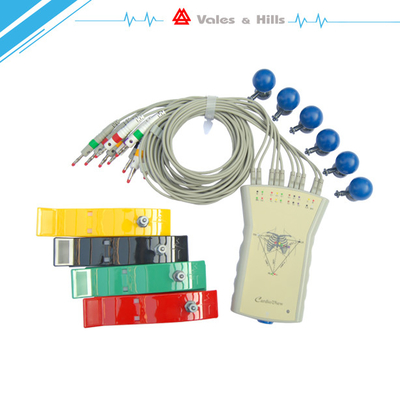

Portable PC Based ECG With USB ECG for PC WINDOWS CV200

Portable PC Based ECG With USB ECG for PC WINDOWS CV200

Portable PC Based ECG With USB ECG for PC WINDOWS CV200
Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Portable PC Based ECG With USB ECG for PC WINDOWS CV200

Hình ảnh lớn :  Portable PC Based ECG With USB ECG for PC WINDOWS CV200 Giá tốt nhất

Thông tin chi tiết sản phẩm:
Place of Origin: Beijing, China (Mainland)
Hàng hiệu: V&H
Chứng nhận: CE,ISO13485,FS,CO and CQ etc.
Model Number: CV200
Thanh toán:
Minimum Order Quantity: 1box/boxes
Giá bán: negotiation
Packaging Details: standard package
Delivery Time: within 3 days after payment arrival
Payment Terms: Western Union,, T/T,Paypal,Credit card
Supply Ability: 150 Box/Boxes / Quarter
Chi tiết sản phẩm
porperty: Resting ecg device color: Grey and white
Connection: USB cable Function: ECG WORK STATION,Vector ECG
Channels: simultaneous 12-LEAD ECG Sampling: 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Patient Cable: Standard 10-wire,15-Pin D Connector feature: measurements &Interpretions
Defibrillation protect: Build-in box
Điểm nổi bật:

pc ecg machine

,

computer ecg



Portable USB ecg for PC WINDOWS CV200



Portable PC Based ECG With USB ECG for PC WINDOWS CV200

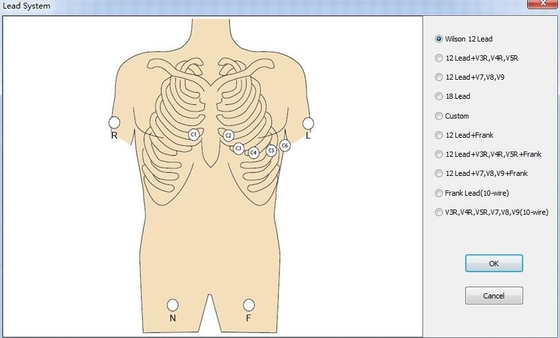

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and

Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and

prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers.

By means of regular updating of software,CV-200 remains state-of-the-art both now and in the

future.

With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200

guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the

patient.







VH- CV200-ECG work station specification
Sampling

1000 S/S/Ch,12 bits,

Simultaneously 12 Leads Recording

Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA
Patient Cable Standard 10-wire,15-Pin D Connector
PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)



Portable PC Based ECG With USB ECG for PC WINDOWS CV200
